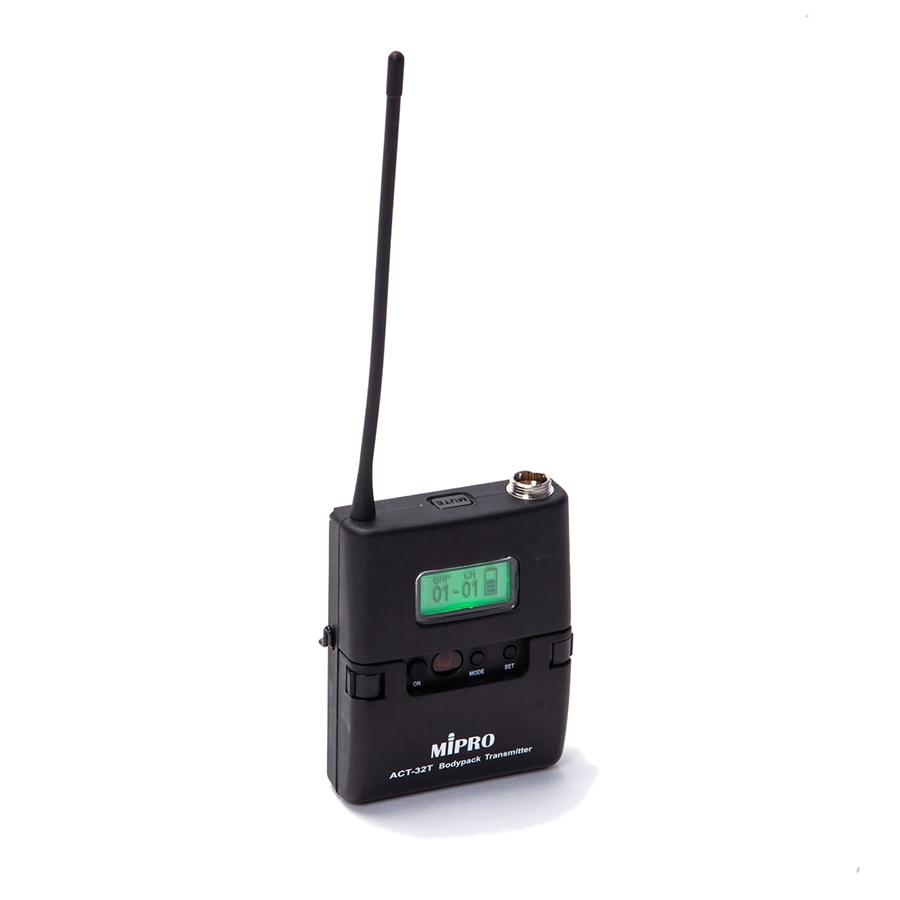

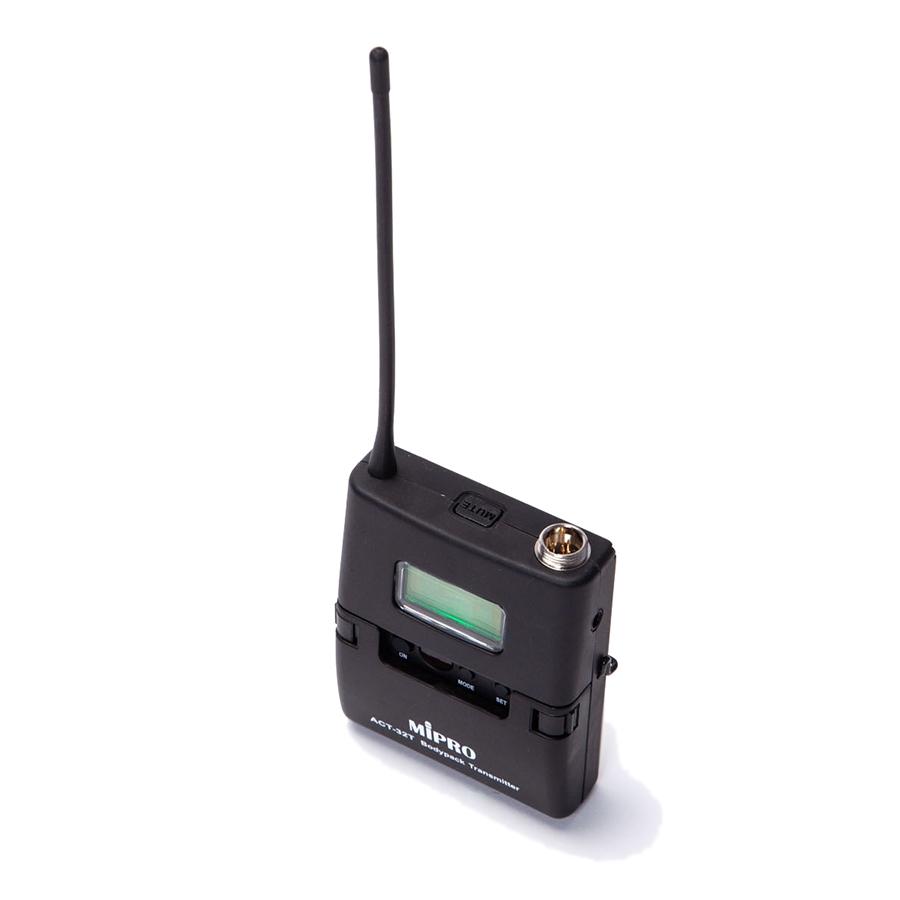

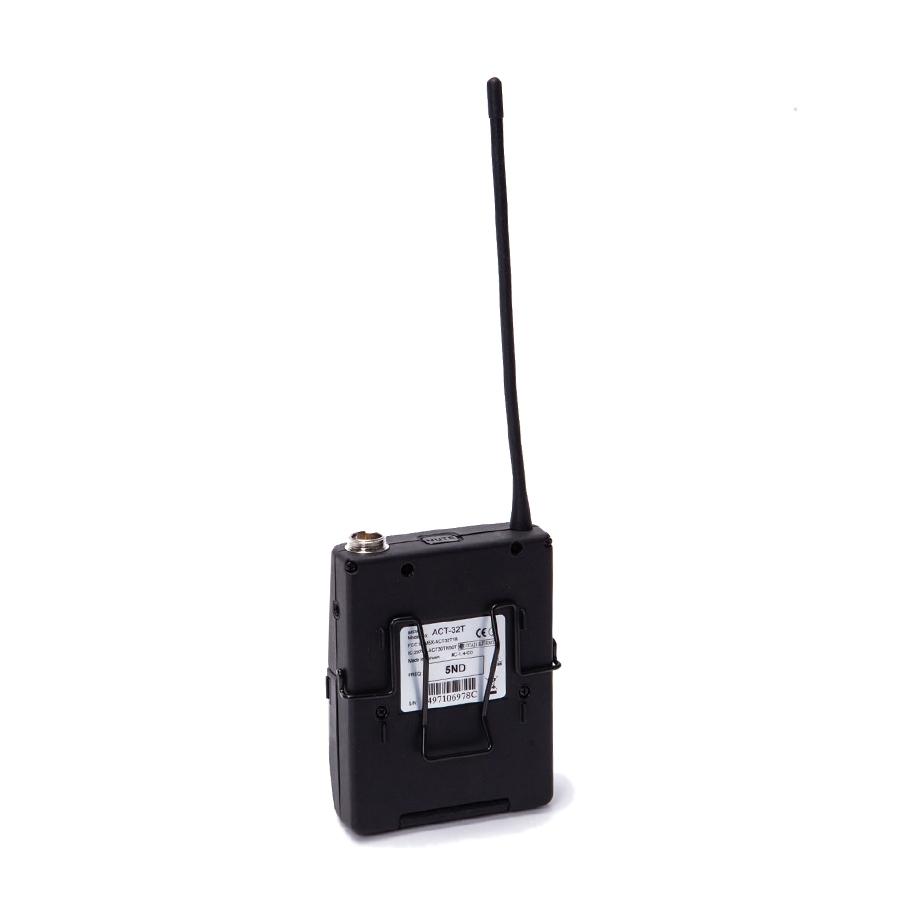

The MiPro ACT-32T Bodypack Transmitter is a replacement bodypack for the MiPro ACT-311B UHF Receiver on frequency 5ND and is your fitness audio solution when you need a top grade bodypack replacement.
- Ultra slim bodypack transmitter.
- On-the-top features include mute button, mini-XLR connector and antenna.
- Backlit LCD displays all operational parameter information.
- World’s first ACT™ function provides precise and rapid frequency sync to the receiver.
- Innovatively designed battery cover allows easy access to operate buttons and prevents accidental operation.
- Mute button with remote-control jack for easy activation of mute function.
- Selectable impedance for microphone or guitar / line inputs. Five selectable gain settings with Auto Limiter to prevent distortion.
- Mini-XLR input with secure screw lock connector.
- Adjustable belt clip allows wearing transmitter in up or down position.
- Housing Material: Rugged ABS Plastic
- Oscillation Mode: PLL Synthesized
- Carrier Frequency Range: UHF 620~644MHz
- Bandwidth: 24MHz
- RF Output Power: 10mW / 50mW (switchable)
- Spurious Emissions: <-55dBc
- Max. Deviation Range: ±68KHz, with compandor and level limiting.
- Approvals: FCC, Industry Canada
- Maximum Input Level: 0dBV
- Input Connector: Switchcraft TA4F Mini-XLR
- Batteries: 2 AA
- Battery life: ~20 hours
- Dimensions: 63(W)×82(H)x22(D)mm / 2.5(W)x3.2(H)x0.9(D)"
