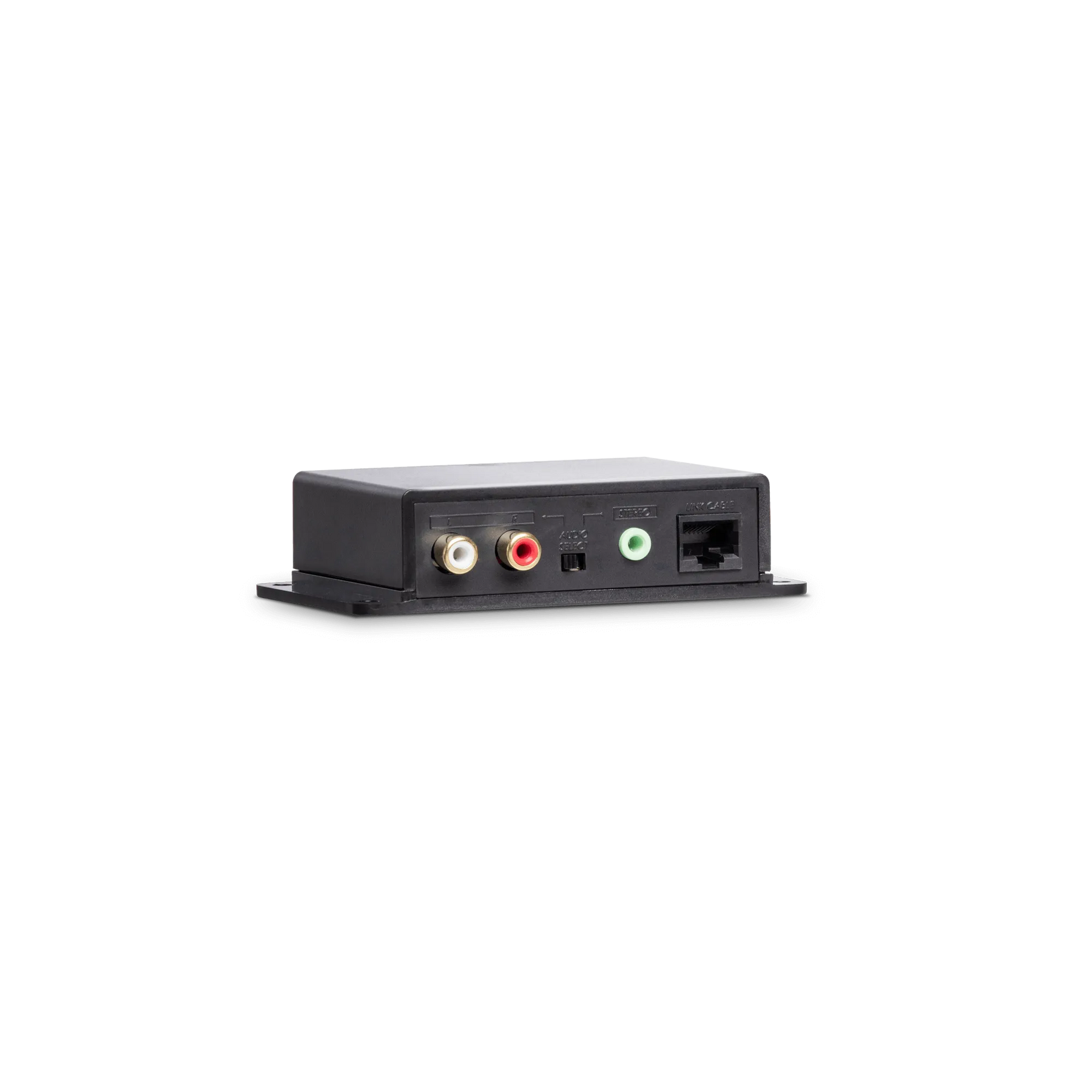

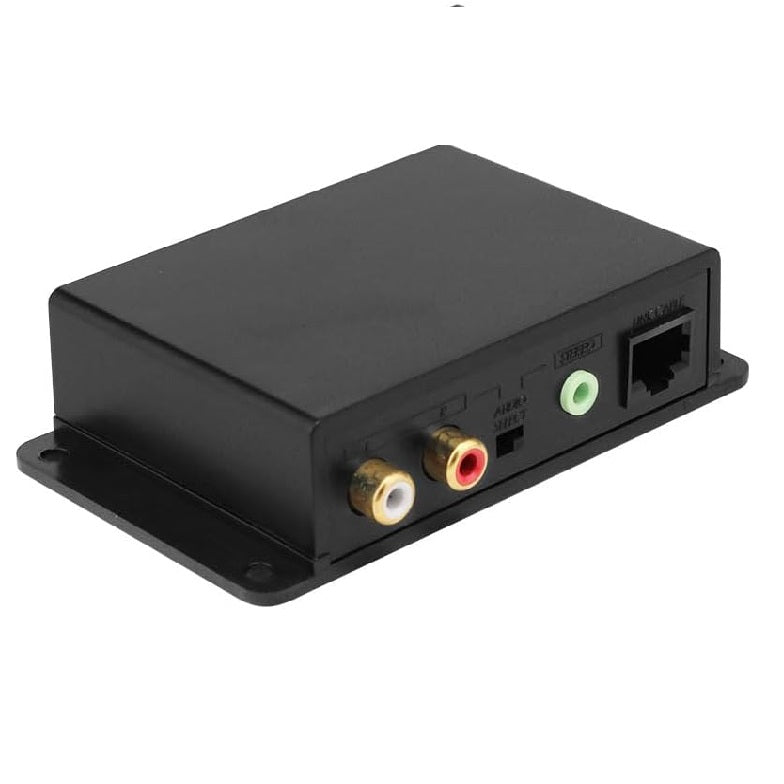

Stereo/Mini Stereo Audio CAT5e Extender
- Built-in a DIP switch to select stereo audio or mini stereo audio.
- Signal extension up to 600M.
- No external power needed.
- Support bandwidth at 20Hz to 20Khz (-3db).
RCA audio/ 3.5mm phone jack audio extender designed to use a cost-effective CAT5e UTP cable to carry the signal, with the transmission distance up to 600M.
Standard Distance of RCA / 3.5mm Transmission
The easiest way to extend stereo audio is to have longer 3.5 / RCA cables. Typical RCA / 3.5mm transmission distance is between 15~20m (49~65 ft), beyond which you may need an audio extender to achieve 3.5mm/RCA audio extension.
Long-Distance Extension for RCA / 3.5mm Phone Jack
AE02 is a stereo audio extender with high flexibility. With AE02, you can transmit stereo analog audio over CAT5/5e/6 cables for 600m (1968ft) and have more options for cabling. It is ideal for installations in homes, commercial spaces, campuses, and more.
Noise-Free, High-Quality, and Unique Inductor Design
One of the most common problems of audio extenders is the humming sound during transmission. With SC&T's unique inductor design, you can enjoy a noise-free, high-quality audio extension with AE02. We use Commscope cables for testing and recommend you choose better wires for a better listening experience.
Use Without an External Power Supply
Typically, audio extenders require an external power supply to their transmitter, receiver, or both. AE02, by contrast, needs no external power supplies and is easy to install outdoors where power supplies are inaccessible. You are free from the problem of power supplies.

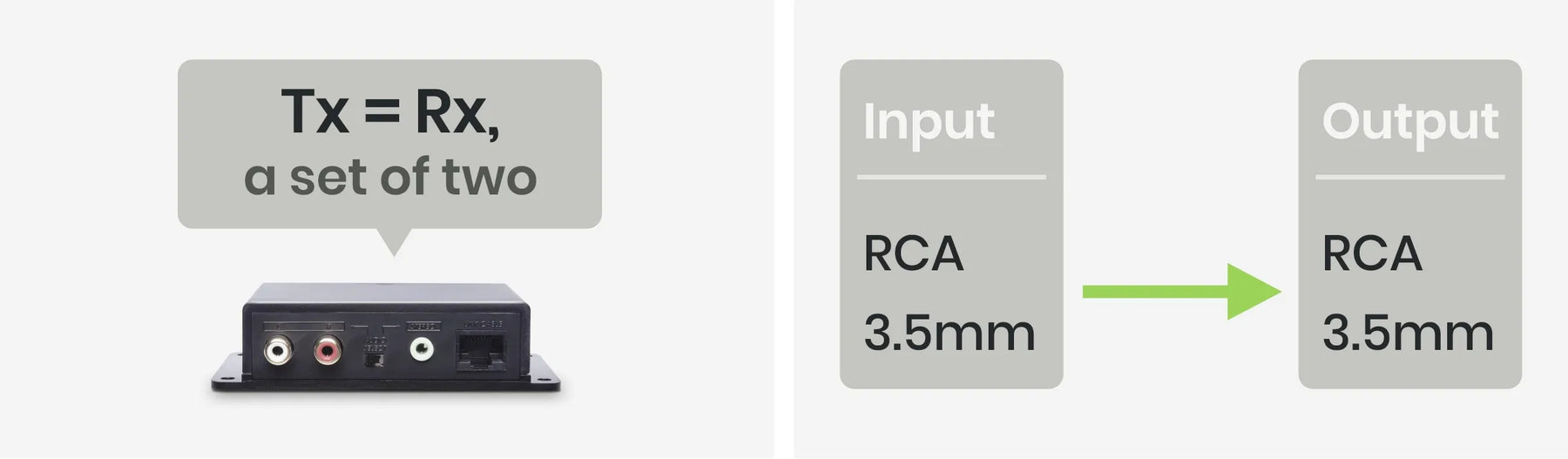

Easy to Install, No Worries About Distinctions Between Transmitters and Receivers
AE02 is a set of two, so you need not to worry about the distinction between the transmitter and receiver. You only need to install, plug, and play.

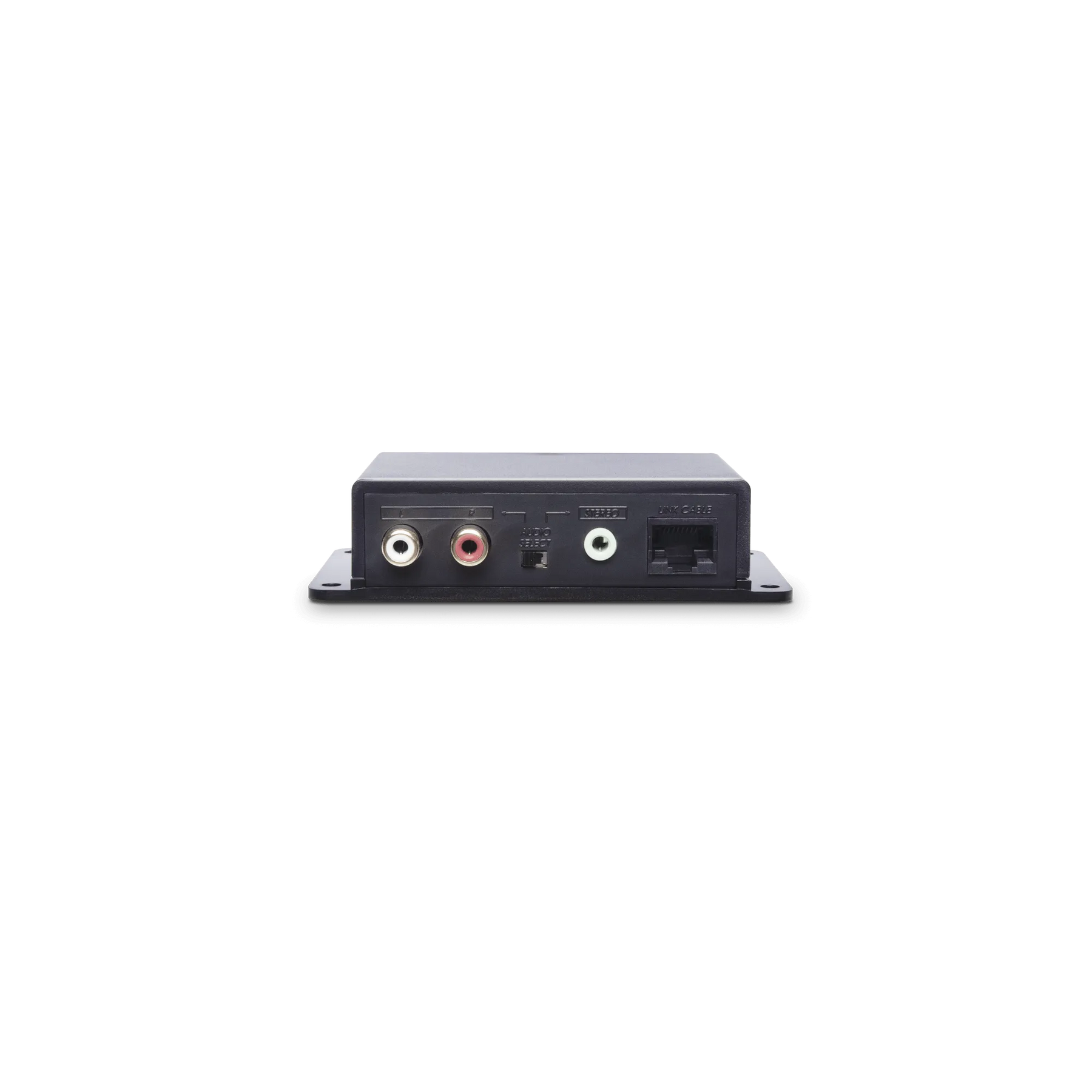

Support RCA / 3.5mm for Your Different Equipment
The built-in DIP switch allows you to choose between RCA and 3.5mm Phone Jack for input and output. RCA and 3.5mm jacks give you more flexibility in your choice of equipment.
